High-Frequency RFID Readers

High-Frequency 80C Mid-Range Reader

Differing plug and play antennas are also available, thus making it possible to find the optimal antenna configuration for every application. Transponders in conformity with ISO 15693 are identified (optional EEPC-transponder).

Key Features:

  • Five antenna ports
  • Short features
  • RS232 and/ or Ethernet interface
  • Power over Ethernet (PoE)
  • Polling mode adjustable for each antenna
  • Configurable test mode with a visual indicator
  • Different configurations available

Find the optimal antenna configuration for every application.

More Configurations

  • On request, the RFID reader is available with different optional IO modules
  • By means of PoE (Power over Ethernet), costs for the infrastructure (cabling, power supplies) can be reduced in the field
  • Comfortable configurations via 4 DIP switches, which can, for example, be used for interfaces or test modes, are available
  • The reader is available with different protocols

Specifications

Part NumberTHG-E4SM-xxxx
THG-R4MM-xxxx
THG-T4MM/T4SM-xxxx
ProtocolASCII/SECS/HSMS
Operating temperature0°C to +50°C / 32°F to 122°F
Storage temperature-25°C to +70°C / -4°F to 158°F
Permissible humidity25% to 80% at 50°C / at 122°F
Protection modeIP40
HousingPS (Polystyrol)
Dimensions105 x 120 x 45 mm / 4.1 x 4.7 x 1.8 in.
Weight280g / 9.9 oz.
Serial Interface RS2321200 Bd - 57600 Bd
Ethernet interface10/100BaseT
Voltage18 - 30 V DC
Current80 - 300 mA
Transmitting level1 Watt
Impedance50 Ohm

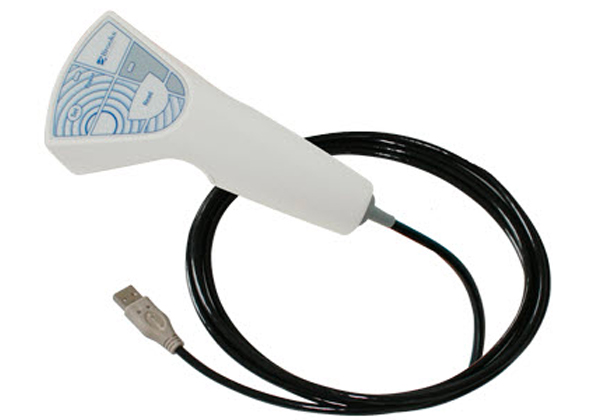

High-Frequency 40 THR RFID Reader

The RFID Reader HF40 THR is connected to the PC via a USB interface. The device is connected directly to the computer. The device with keyboard emulation can be connected to a running PC. The reader automatically detects the driver and subsequently starts the installation.

The reading operation starts at the touch of a button. If identification was successful, the device confirms this by a signal and a flashing LED. The collected data are transferred to the PC via a USB interface and can be displayed and processed in any input field or text document.

The RFID reader is configured via the Set button. The individual settings can be changed at the touch of a button and can be visualized in ASCII or HEX format in a text document on the screen. If the device is used in combination with an emulated COM port, data transfer is carried out using an ASCII protocol.

Individual settings can be changed at the touch of a button and can be visualized in ASCII or HEX format in a text document on the screen.

Key Features:

  • Mobile RFID reader
  • Replacement for barcode reader
  • Quick installation
  • Operation at the touch of a button
  • Emulated serial interface

Specifications

Part NumberTHH-U2M-0R50-SM-0030
Output formatASCII or Hex
DimensionsApproximately 165 x 110 x 80mm / 6.5 x 4.3 x 3.2 inches
Cable lengthDifferent cable types and lenghts are available (e.g. 3m or 5m / 118.11 inches or 196.85 inches)
Weight220g / 7.1 ozs.
Housing materialABS
Protection classIP40
Operating temperature-25°C to 70°C / -13°F to 158°F
Storage temperature-40°C to 85°C / -40°F to 185°F
Voltage5V +/- 5%
Current (active mode)100 mA
Current (passive mode)40 mA
